# Tank Strapping: A Comprehensive Guide
Tank strapping is a critical method used to determine the volume of liquid contents inside a container or storage tank. This process involves taking precise measurements of the tank, such as height, diameter, and circumference, which are then used to calculate the actual volume of the tank—a process known as tank calibration. Together, tank strapping and calibration play a vital role in helping businesses effectively track, control, and manage their liquid inventories, whether it’s oil, chemicals, or other valuable liquid assets.
## What Is Tank Strapping?
Tank strapping essentially translates physical measurements of a tank into usable data for calculating the volume of its contents. These measurements typically include height, external diameter, and circumference. Over time, the practice evolved from manual steel tape measurements to advanced technological solutions like radar and ultrasonic gauges. Despite the modernization, the term "tank strapping" remains rooted in its early days when steel tapes were commonly used for these measurements.
In tank calibration, volumes are expressed in various units such as barrels, gallons, liters, or cubic meters. Once linear measurements are paired with their corresponding volumes, this data is compiled into a tank chart or calibration table. These charts are often placed on the exterior of tanks to provide quick and accurate information about the current contents of the tank.
### Why Is It Called Tank Strapping?
The term "tank strapping" originates from the historical use of steel tapes or straps to measure tanks. Although contemporary methods now incorporate cutting-edge technology, the name has persisted due to its historical significance. Today, the process is more sophisticated, employing tools like radar and ultrasonic sensors to achieve greater precision and safety.
## The Importance of Tank Strapping
Tank strapping and calibration are essential for maintaining accurate inventory management of liquid assets. Without these processes, relying solely on manual methods or outdated gauging systems can lead to significant inaccuracies, resulting in costly errors. By offering precise measurements, tank strapping provides businesses with a cost-effective way to optimize their operations.
### How Does Tank Strapping Save Money?
1. **Improved Inventory Tracking**: Losses in inventory become easier to detect.
2. **Prevents Errors**: Mistakes during refilling or loading are minimized.
3. **Enhances Transparency**: Clients receive exact amounts, fostering trust.
4. **Better Planning**: Managers can plan resources more effectively.
5. **Safety Improvements**: Workers are kept safe by knowing precise content levels, especially in hazardous environments.
Accurate measurements derived from tank strapping ensure compliance with regulations and maintain good relationships with stakeholders, including regulatory bodies and insurers.
## Types of Tanks Requiring Calibration
Virtually all tanks holding liquid inventory, chemicals, oil, gas, or other fuels require calibration to ensure proper inventory and investment management. Below are examples of tanks that undergo tank strapping and calibration:

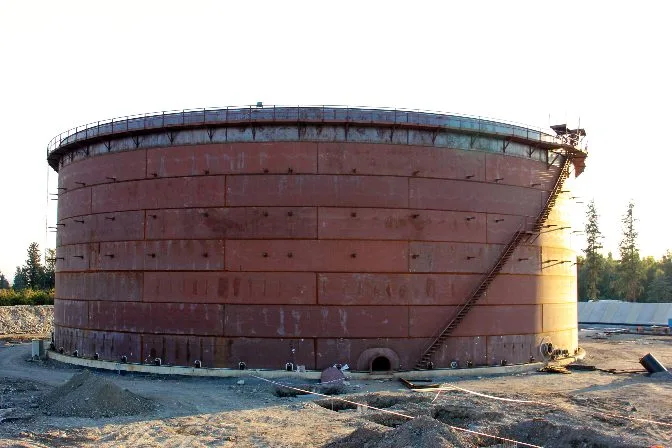

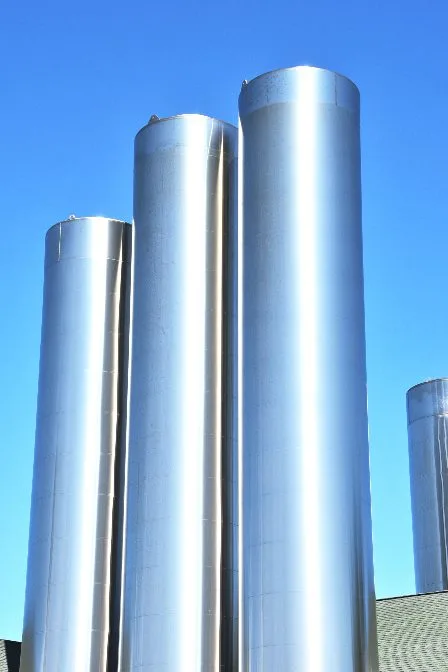

### Vertical Tanks
Commonly manufactured in one piece, vertical tanks are versatile and can be used both indoors and outdoors. They store a variety of materials, from water to industrial chemicals.

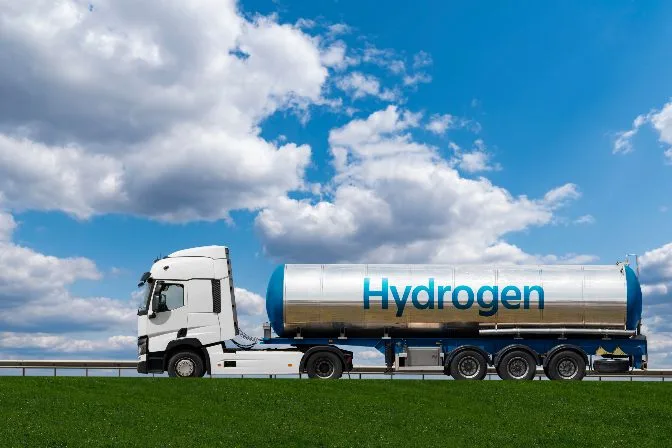

### Horizontal Tanks
Smaller and more cost-effective than vertical tanks, horizontal tanks are ideal for transporting materials such as pesticides and liquid fertilizers.

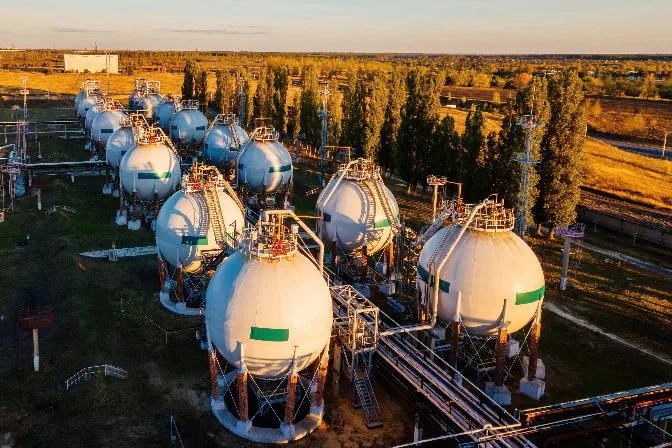

### Spherical Tanks
Designed to handle liquids or gases under varying pressures, spherical tanks are particularly useful for storing compressed gases like butane. Proper calibration is crucial for safety reasons.

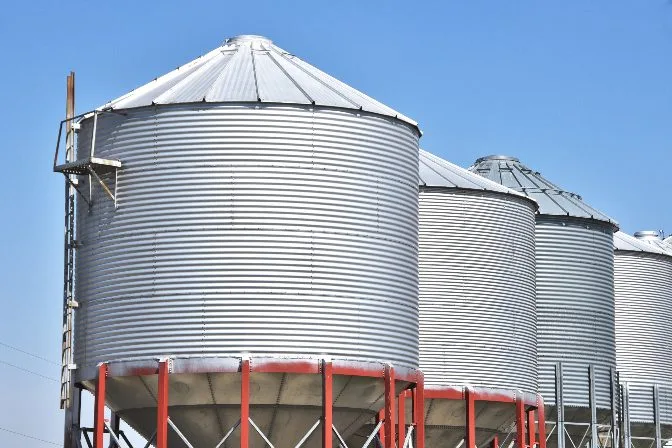

### Fixed Roof Tanks
These tanks feature a permanent roof, either conical or domed. Some are sealed to prevent leakage, while others have pressure relief systems to accommodate changes in pressure during filling or emptying.

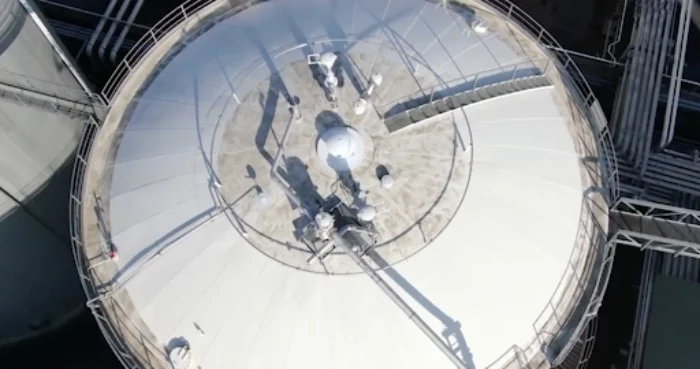

### Floating Roof Tanks
Floating roof tanks eliminate vapor space entirely. Their roofs float directly on the liquid surface, adjusting as the liquid level decreases.
## Understanding Tank Strapping Tables
Tank strapping tables convert raw linear measurements into calibrated volume data. Other terms for these tables include tank calibration charts, gauge charts, and dip charts. These tables enable workers to derive the remaining volume of a tank based on height measurements.
For instance, a height measurement of 5 inches might correspond to a different volume in a small process tank compared to an industrial crude oil tank. Each tank requires its own unique calibration table, which may display measurements in both metric and imperial units. Additional factors, such as tank irregularities, must also be considered when creating these charts.
## Reading a Tank Strapping Table
Here’s an example of a simplified tank strapping table:
| Inches | Millimeters (mm) | Barrels (bbl) | Liters | US Gallons |
|--------|------------------|---------------|--------|------------|
| 2 | 51 | 1 | 159 | 42 |
| 4 | 102 | 2 | 318 | 84 |
| 6 | 153 | 3 | 477 | 126 |
| 8 | 203 | 4 | 636 | 168 |
This table shows how a linear measurement in inches correlates to volume in various units. For example, if the height measurement is 4 inches, the tank contains approximately 2 barrels, 318 liters, or 84 US gallons of liquid.
## Manual Tank Strapping Methods
Despite advancements in technology, manual methods remain popular for obtaining linear measurements. Common manual techniques include:
### Innage Method
The innage method involves measuring the depth of liquid using a plum bob and tape. The plum bob is dropped into the tank until it touches the bottom, ensuring accuracy before reading the measurement.
### Ullage Method
The ullage method calculates the unfilled portion of the tank. The tape is stopped when it reaches the liquid surface, and the total tank height is subtracted to find the liquid volume.
### Other Manual Methods
Additional measurements such as circumference, temperature, and object size may also be necessary for precise calibration.
### Essential Manual Tools
- **Plum Bob**: A weighted line used in the innage and ullage methods.
- **Spring Balance**: Measures weight for certain conversions.
- **Steel Tape**: Required for taking specific measurements.
- **Surveyor’s Leveling Tool**: Assists in determining tank floor profiles.
## Technological Tank Strapping Solutions
Modern technology offers faster and safer alternatives to manual methods. Examples include:
### Continuous Float-Level Transmitters
These devices continuously monitor tank levels and update data in real-time. They’re ideal for foamy or vaporous liquids.
### Electro-Optical Distance Ranging
This method uses 3D mapping to measure tank dimensions without scaffolding, improving efficiency and precision.
### Submersible Pressure Transducers
These sensors measure pressure to calculate liquid height, suitable for hazardous substances.
### Ultrasonic Sensors & Radar Transmitters
Emitting waves to determine liquid levels, these sensors are compact, affordable, and low-maintenance.
## Drones in Tank Inspection

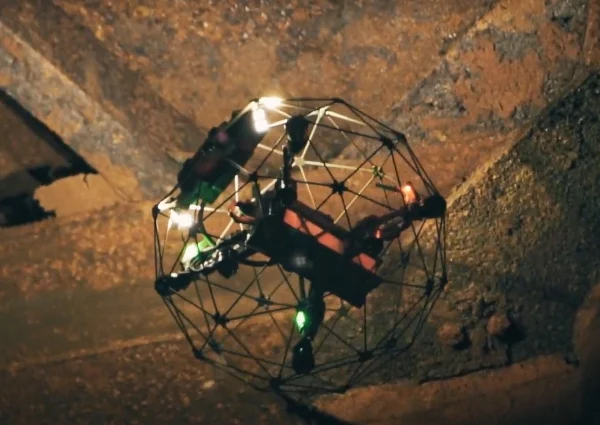

Unmanned aerial vehicles (UAVs), such as Flyability’s Elios 2, are revolutionizing tank inspections. Drones provide detailed visual data, creating 3D models that enhance the accuracy and repeatability of tank strapping.
PERTAMINA, Indonesia’s national energy company, utilized the Elios 2 to inspect an aging crude oil tank. The results surpassed expectations, reducing costs and increasing efficiency compared to traditional methods. UAVs represent a cost-effective solution for streamlining tank maintenance.
---
Tank strapping is more than just a process—it’s a cornerstone of modern inventory management. Whether through manual methods or advanced technology, ensuring accurate tank calibration is key to success in industries handling liquid assets.
